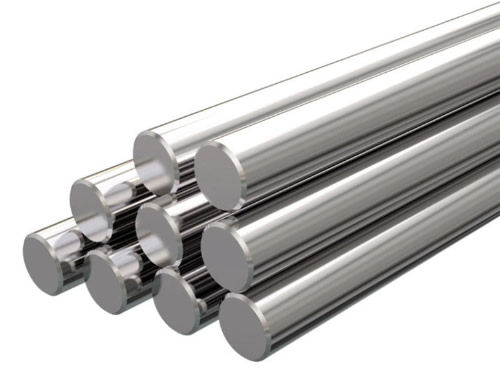

316L Stainless Steel Bar

316L stainless steel rod is a low-carbon stainless steel material composed of chromium, nickel, and molybdenum, which has excellent corrosion resistance, especially in chloride media. It also has excellent mechanical properties, high strength, and excellent toughness, suitable for various industrial applications, including marine, chemical, and pharmaceutical industries. In addition, 316L stainless steel rods also have good high-temperature resistance and are easy to weld.

Standard: ASTM, GB, DIN, BE, EN, JIS

Product Name	316L Stainless Steel Bar
Technique	Cold Rolled; Hot Rolled
Shape	Round, Square, Hexagonal
Material	200 series,300 series,400 series,900 series
Material	201,202,304,304L,316,316L,321,310S,403,410,416,420,430,940L. etc
Standard	JIS/SUS/GB/DIN/ASTM/AISI/EN
Surface	BA, 2B, 2D, 4K, 6K, 8K, NO.4, HL, SB, Embossed
Package	clients' requirement and Standard export sea-worthy packing
MOQ	1 ton

Available Size Range

Dimension	Range
Diameter	3-480mm
Length	1m-12m or as required

Available Surface

Chemical Properties of Frequently-used :

UNS	ASTM	EN	JIS	C%	Mn%	P%	S%	Si%	Cr%	Ni%	Mo%
S20100	201	1.4372	SUS201	≤0.15	5.5-7.5	≤0.06	≤0.03	≤1.00	16.0-18.0	3.5-5.5	-
S20200	202	1.4373	SUS202	≤0.15	7.5-10.0	≤0.06	≤0.03	≤1.00	17.0-19.0	4.0-6.0	-
S30100	301	1.4319	SUS301	≤0.15	≤2.00	≤0.045	≤0.03	≤1.00	16.0-18.0	6.0-8.0	-
S30400	304	1.4301	SUS304	≤0.08	≤2.00	≤0.045	≤0.03	≤0.75	18.0-20.0	8.0-10.5	-
S30403	304L	1.4306	SUS304L	≤0.03	≤2.00	≤0.045	≤0.03	≤0.75	18.0-20.0	8.0-12.0	-
S30908	309S	1.4833	SUS309S	≤0.08	≤2.00	≤0.045	≤0.03	≤0.75	22.0-24.0	12.0-15.0	-
S31008	310S	1.4845	SUS310S	≤0.08	≤2.00	≤0.045	≤0.03	≤1.50	24.0-26.0	19.0-22.0	-
S31600	316	1.4401	SUS316	≤0.08	≤2.00	≤0.045	≤0.03	≤0.75	16.0-18.0	10.0-14.0	2.0-3.0
S31603	316L	1.4404	SUS316L	≤0.03	≤2.00	≤0.045	≤0.03	≤0.75	16.0-18.0	10.0-14.0	2.0-3.0
S31703	317L	1.4438	SUS317L	≤0.03	≤2.00	≤0.045	≤0.03	≤0.75	18.0-20.0	11.0-15.0	3.0-4.0
S32100	321	1.4541	SUS321	≤0.08	≤2.00	≤0.045	≤0.03	≤0.75	17.0-19.0	9.0-12.0	-
S34700	347	1.455	SUS347	≤0.08	≤2.00	≤0.045	≤0.03	≤0.75	17.0-19.0	9.0-13.0	-
S40500	405	1.4002	SUS405	≤0.08	≤1.00	≤0.04	≤0.03	≤1.00	11.5-14.5	≤0.60	-
S40900	409	1.4512	SUS409	≤0.08	≤1.00	≤0.045	≤0.03	≤1.00	10.5-11.75	≤0.50	-
S43000	430	1.4016	SUS430	≤0.12	≤1.00	≤0.040	≤0.03	≤0.75	16.0-18.0	≤0.60	-
S43400	434	1.4113	SUS434	≤0.12	≤1.00	≤0.040	≤0.03	≤1.00	16.0-18.0	-	-
S44400	444	1.4521	SUS444L	≤0.025	≤1.00	≤0.045	≤0.03	≤1.00	17.5-19.5	≤1.00	-
S40300	403	-	SUS403	≤0.15	5.5-7.5	≤0.04	≤0.03	≤0.50	11.5-13.0	≤0.60	-
S410000	410	1.40006	SUS410	≤0.15	≤1.00	≤0.035	≤0.03	≤1.00	11.5-13.5	≤0.60	≤1.00
S42000	420	1.4021	SUS420J1	0.16~0.25	≤1.00	≤0.04	≤0.03	≤1.00	12.0-14.0	≤0.75	≤1.00
S440A	440A	1.4028	SUS440A	0.60~0.75	≤1.00	≤0.04	≤0.03	≤1.00	16.0-18.0	-	≤0.75
S32750	SAD2507	1.441		≤0.03	≤1.2	≤0.035	≤0.02	≤0.80	24.0-26.0	6.0-8.0	3.0-5.0
S31803	SAF2205	1.4462		≤0.03	≤2.0	≤0.03	≤0.02	≤1.00	21.0-23.0	4.0-6.5	2.5-3.5
N08904	904L	1.4539		≤0.0.3	≤2.0	≤0.035	≤0.03	≤1.00	18.0-20.0	23.0-25.0	3.0-4.0

Stainless Steel Material Properties:

Type No.	Tensile Strength, ksi	Yield Strength, ksi	Elongation in 2 inches, %	Reduction of Area, %	Brinell Hardness
301	110	40	60	70	165
302	90	40	55	70	150
303	90	35	50	55	160
304	85	35	55	70	150
304L	80	30	55	70	140
316	85	35	60	70	150
316L	78	30	55	65	145
321	85	35	55	65	150
410	75	40	35	70	155
416	75	40	30	65	155
420	95	50	25	-	241
430F	80	45	25	50	165
15-5	160	145	15	-	330
17-4 (Condition A)	150	110	10	45	332

Application

Stainless steel bar is the most essential players in the machining industry. Stainless steel bars applications and utilizations rely on the kind of required and come in different forms as well, such as flat bars, round bars, hexagonal bars, square bars. This is why stainless steel bars are chosen to create machine parts and automotive components.
